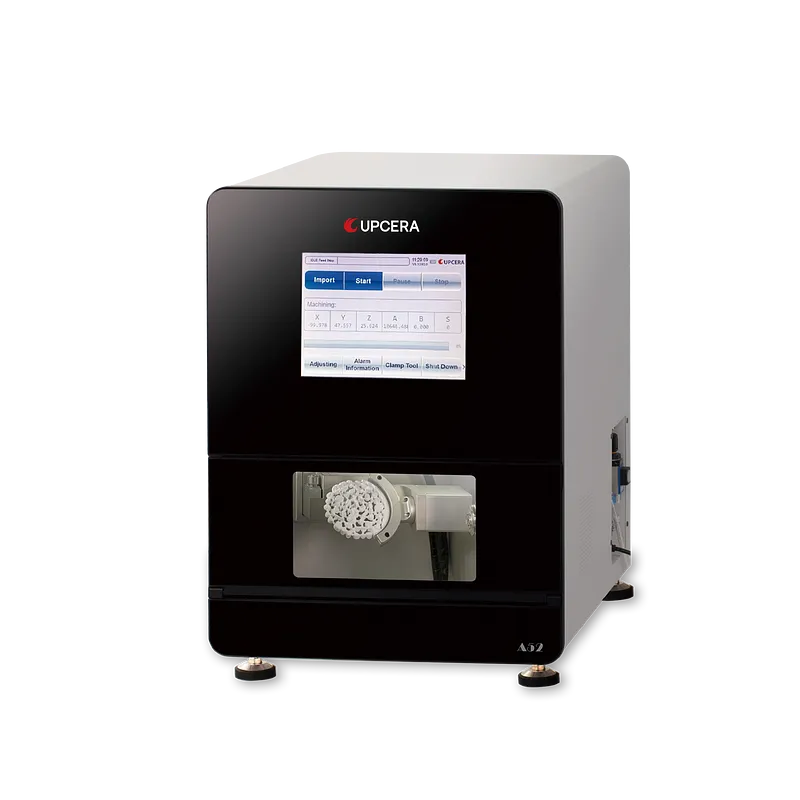

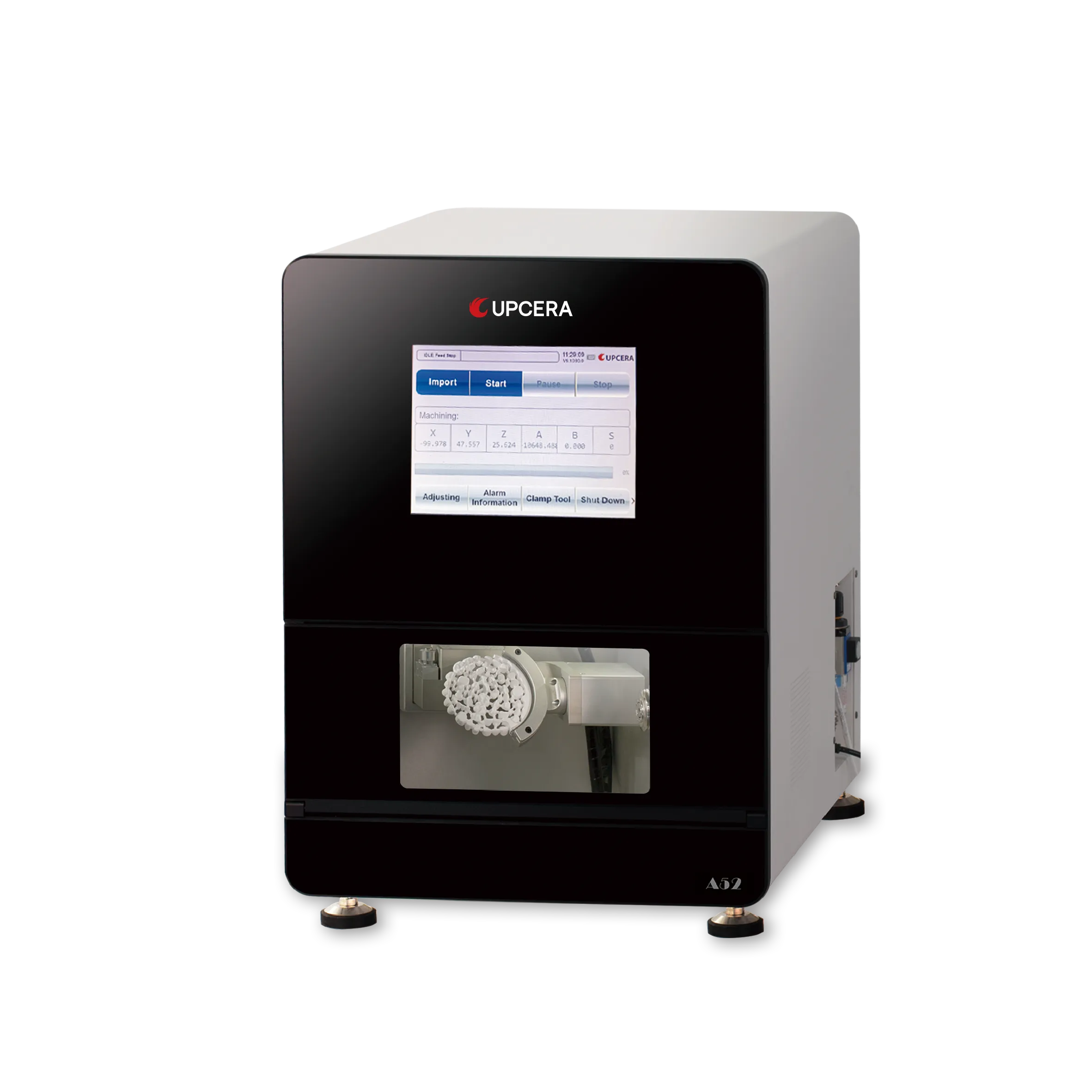

UPCERA
-
A52
· 5-axis simultaneous milling
· Integrated fully enclosed milling chamber for outstanding sealing and dustproof
· Built-in PC with a 12-inch touchscreen
· Equipped with servo motor and ball screw, precise within 0.0lmm of accuracy
· High-performance aircraft-grade aluminum alloy housing
· Up to 90° large angle for buccal side cutting
· Automatic tool changer and tool setter detection
Device Parameters
Dimensions
55*49*74cm
Weight
110kg
Voltage
220V 50Hz ; 110V 60Hz
Power
1.0kw
Compatible Compressed Air
0.5-0.8 MPa
Spindle Speed
80, 000rpm
Tilt Angle
A axis: ±360°, B axis: -35°/+95°
Precision
<0.01mm
Number of Bur
12
Cooling Type
Air cooling
Materials
Zirconia, Wax, PEEK, PMMA (Φ98.5mm, thinkness of 10mm-30mm）
Milling Speed
Zirconia, PEEK, PMMA (10 minutes/pc), Wax (3 minutes/pc), Framework (45 minutes/pc)
Application
Coping, full contour crown, bridge, inlay, onlay, veneer,post-core crown, telescopic crown, customized abutment crown, overstructure, PEEK framework
