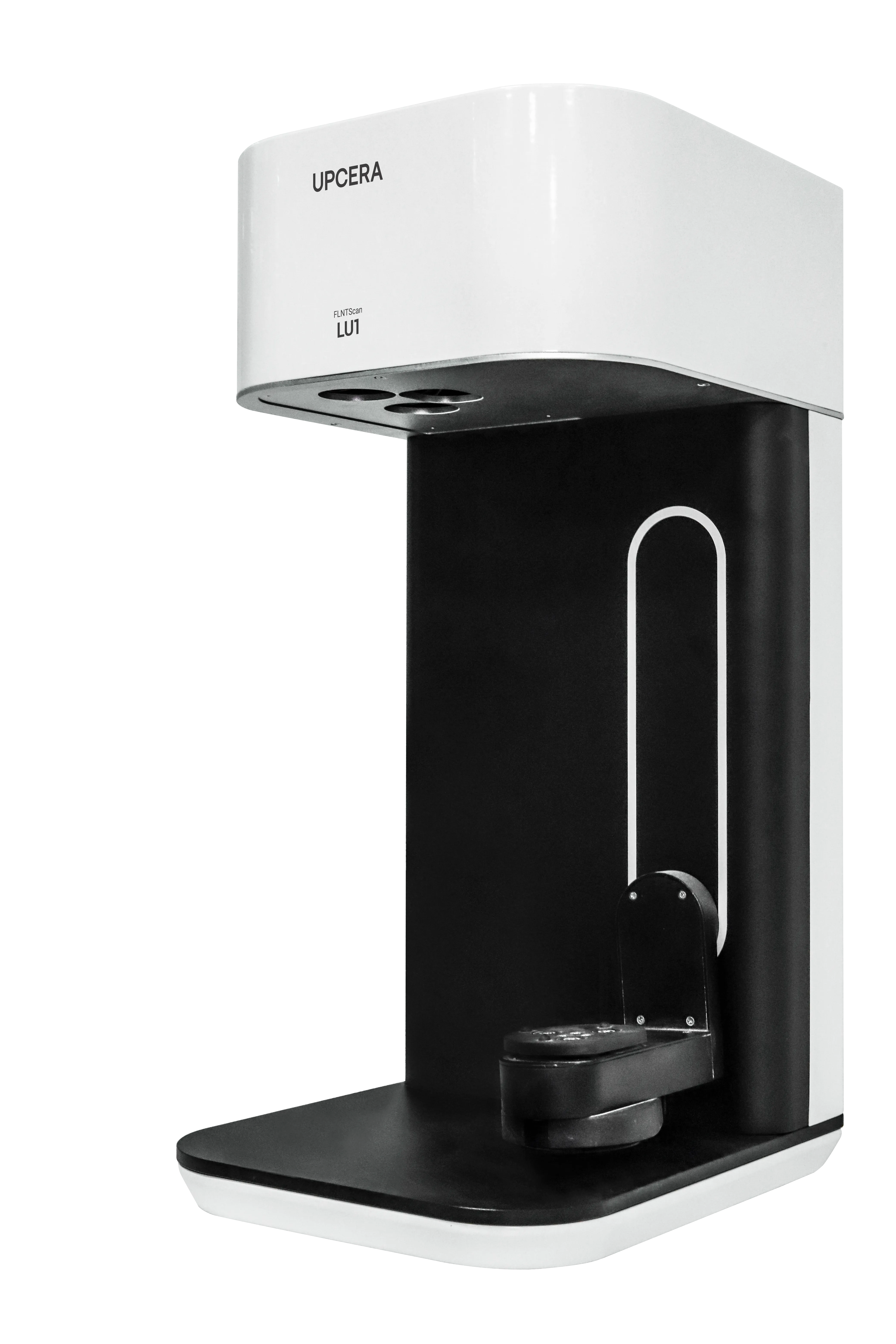

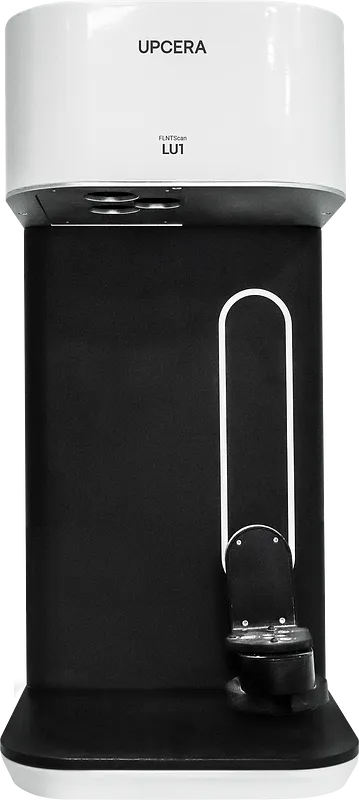

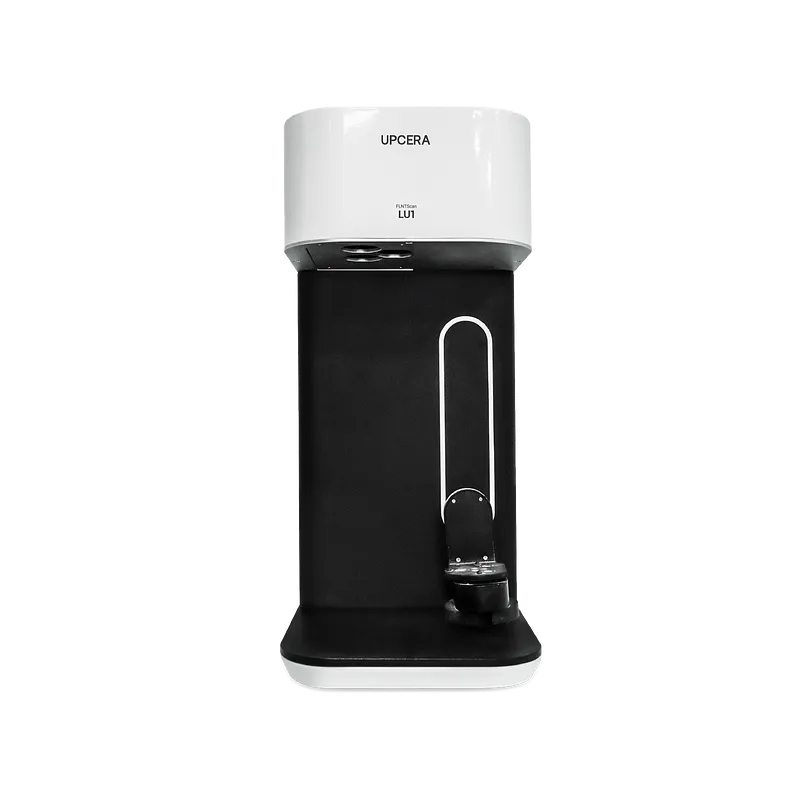

FLNTScan LU1
UPCERA
-
FLNTScan LU1
· Free switch
One-button to switch to the needed scanning step, without the limit of the traditional scanning processes.· Applicable for multiple restorations
Supports scanning of veneer, impression,
orthodontic models, RPD, unsegmented
models, implant, etc.· Open system-simple and fast, easy to use
1. Import and export the STL file freely.
2. Output format: STL, UM, PLY, OBJ.
3. Integrate seamlessly to third party design software, like EXO CAD, 3Shape, Dental Wings, etc.· High-definition scanning
Dual high-resolution cameras provide clearer data surface quality.· Intelligent high-speed scanning
One-button to add-scan, accurately and correctly, no need to search for the holes and scanning angles, improving scanning efficiency.
All-in-one scanning expert for dental laboratories
· Using dual 3 mega pixels high frame cameras, with much clearer image capturing technology, newly upgraded software algorithm, faster scanning speed and better post processing.
· 360 degree without blind angle scanning, super large capturing area to scan the narrow gap for the orthodontics models, veneer and unsegmented models, etc.
Technical Data
Model
FLNTScan LU1
Dimension
250 x 300 x 539mm
Weight
16Kg
Cameras
2x3 mega pixels
Accuracy
8μm
Projector
Customized blue light, supports multi-color scan
Interface
USB 3.0
Output format
STL;PLY;OBJ
Power supply
AC100-240V，50HZ
Axis quantity
2
Texture mode
Point cloud colorization
Structure
Open
Feature
Unsegmented model scan
Scanning method
Non-contact blue light scan
